Foam Monitor & Equipments
Body: Carbon Steel Water Ways (Hot Dip Galvanized)
Swivel Joint: Bronze (Manual Lever Lock)/SS 304
Inlet: Flanged to IS:1538/ANSI B 16.5 150 LBS
Outlet: Male BSP Threaded / Nozzle made of Alu. Alloy / Gunmetal
Test Pressure:23 kgf/cm2

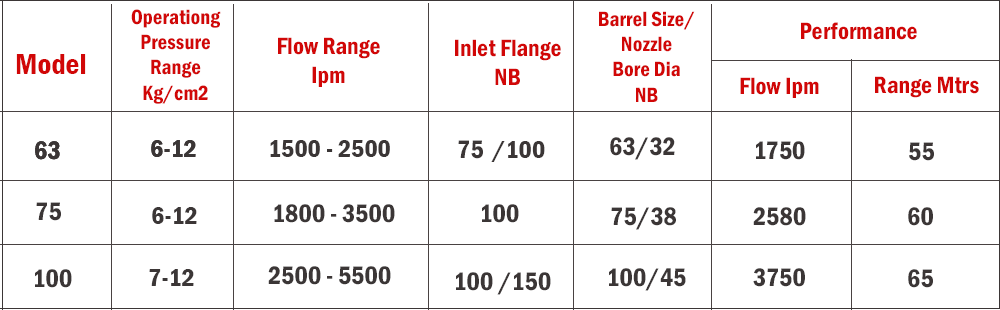

*when used with matching jet nozzles at 7 kg/cm2 pressure at nozzle, at an approximate angle 30
degrees, in still wind conditions
FOAM EQUIPMENTS

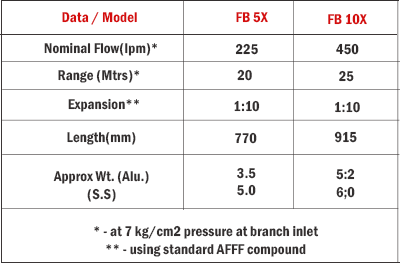

Technical / Performance Data
Trolley Monitor
Foam Mobile Trolley:
Tank: Corrosion resistant FRP
Chassis Frame: M.S./SS 304
Handle: SS 304
Hose Basket: SS 304s
Tyers: Solid Polymer Tyers
Inline Inductor provided with ON/Off valve and having
induction rate of 3%- or 6%-mm Variable options available on request.
Inductor provided with PVC braided hose and SS 304 Dip
Tube. 2 Nos. of 63mm dia. 15 Mtrs. Long Hoses provided
with the Trolley (choice of RRL or Synthetic Hose).
Trailers:
Construction:-
Chassis: M.S.
Deck: Non-slip Aluminum Chequered Plate
Wheels: (pneumatic / solid) as per requirement M.S. Stabilizing jacks:
Nozzle: As per requirement
Inlet: 63mm Male Instantaneous with Non-Return Valve
